Tekniska specifikationer
E-bike
UI/Remote
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App
Motor
Specialized 3.1 Motor, 101Nm torque, 666Nm power
Charger
Specialized 4amp charger
Battery
840Wh battery
Frameset
Seat Binder
Alloy, 38.6mm
Frame
All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Suspension
Rear Shock
*Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
Fork
Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
Brakes
Front Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
Rear Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
Cassette
XS-1270, 12-speed, 10-52t
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Chain
SRAM Eagle 70 T-Type Flattop Chain
Rear Derailleur
SRAM Eagle 70 T-Type
Shift Levers
SRAM 70 trigger, 12-speed, single click
Crankset
SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Wheels & tires
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Spokes
DT Swiss Elemental
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta Valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore

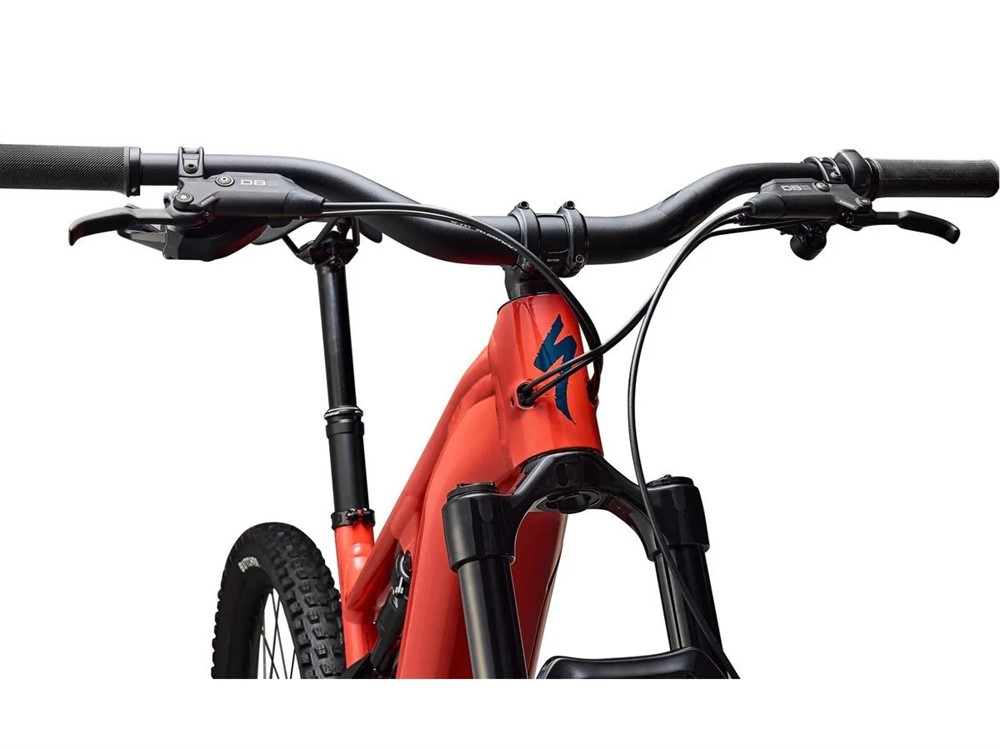

Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
Saddle
Body Geometry Bridge Saddle, steel rails
Grips
Specialized Trail Grips
SeatPost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm
Accessories
SWAT
SWAT Internal downtube storage
Product details
Product ID
221348
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
26.08 kg (57 lb, 7.8 oz)
Weight Size
S4
